Neptune Systems

CNC Routers

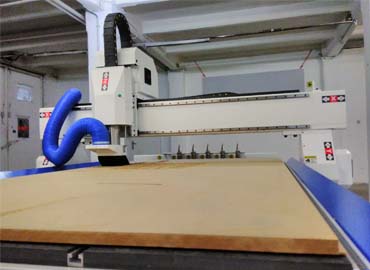

CNC Router Machine

i) Vacuum System CNC Router

Features:
  • Fabricated and stress relived structure ensures min. rigidity & distortion
  • Double motors on Y axis ensures steady movement
  • Rack & gear transmission ensures fast speed and high accuracy
  • High power spindle with low noise
  • Function of continuous working at stop point during power failure
  • Optional- Vacuum system
Main Performance and Technical Data:
Particulars
Working Area 1300X2500 / 1500X3000
Tool Dia Dia 3.175, Dia4, Dia6, Dia12
Spindle speed 3000-24000RPM
Spindle motor 3Kw Air cooling
Working Instruction HPGL, G Code, ENG
Feeding Height 200mm
Working Voltage 380V
Max. travelling Speed 20000mm/min

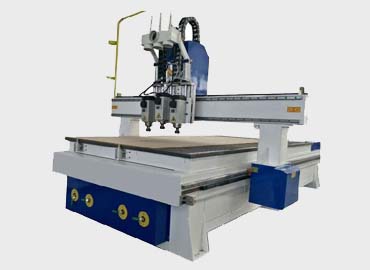

ii) Pneumatic Three Head Routers

Features:
  • Mainly used for tool changing during processing, during processing some time need two or three different tools carving pattern effect in order to shorten the tool change above system proves to coideal.
  • Rigid cast body bed ensures min vibration & distortion
  • Double motors & drive for Y axis ensure steady movement
  • High accuracy Rack & gear transmission ensures fast speed & high accuracy
  • High power spindle
  • Optional – Vacuum cleaner
Main Performance and Technical Data:
Particulars
Working Area 1300X2500 / 1500X3000
Tool Dia Dia3.175, Dia6, Dia 12
Spindle speed 6000-18000RPM
Spindle motor 4.5Kw Air coolingX3
Feed Rate 200mm
Working Voltage 380V
Max. travelling Speed 800mm/min
Neptune Systems
Neptune Systems

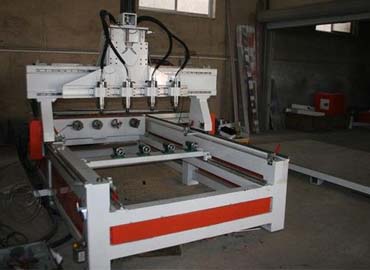

iii) Multi Head CNC Router

Features:
  • And stress relived structure ensures min. rigidity & distortion
  • Fabricated Double motors on Y axis ensures steady movement
  • Rack & gear transmission ensures fast speed and high accuracy
  • High power spindle with low noise
  • Function of continuous working at stop point during power failure
  • Optional – Vacuum cleaner
Main Performance and Technical Data:
Working Area 1600X2500 X180mm / 1325X2500X180 mm
Tool Dia Dia 3.175, Dia4, Dia6, Dia12
Spindle speed 3000-24000RPM
Spindle motor 1.5 Kw (Optional 2.2Kw/3 Kw)
Working Instruction PLT/G Code, ENG/UG
Control System DSP Control (Optional handle control)
Working Voltage 220V/50 Hz (Optional 380V)
Max. travelling Speed 20000mm/min
Motor Drive Stepper Motor

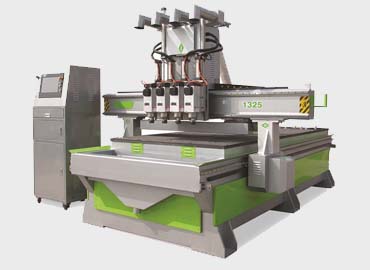

iv) Four Spindle CNC Router

Features:
  • Double Fabricated and stress relived structure ensures min. rigidity & distortion
  • Motors on Y axis ensures steady movement
  • Rack & gear transmission ensures fast speed and high accuracy
  • High power spindle with low noise
  • Function of continuous working at stop point during power
Main Performance and Technical Data:
Working Area 1600X2500 X180mm / 1300X2500X180 mm
Tool Dia Dia 3.175, Dia4, Dia6, Dia12
Spindle speed 3000-24000RPM
Spindle motor 1.5 Kw (Optional 2.2Kw/3 Kw)
Working Instruction PLT/G Code, ENG/UG
Control System DSP Control (Optional handle control)
Working Voltage 220V/50 Hz (Optional 380V)
Max. travelling Speed 12000mm/min
Motor Drive Stepper Motor
Neptune Systems
Neptune Systems

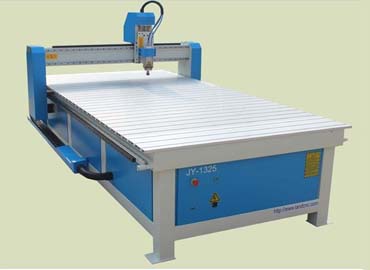

v) Steel Structure Wood Working CNC Router

Features:
  • Fabricated and stress relived structure ensures min. rigidity & distortion
  • Double motors on Y axis ensures steady movement
  • Rack & gear transmission ensures fast speed and high accuracy
  • High power spindle with low noise
  • Function of continuous working at stop point during power failure
  • Optional- Vacuum system
Main Performance and Technical Data:
Working Area 1300X2500 X200mm/1500X3000X200mm/2000X3000X200mm
Tool Dia Dia 3.175, Dia 4, Dia 6, Dia 12
Spindle speed 3000-24000RPM
Spindle motor 3 Kw
Feeding Height 100mm
Working Voltage 220V/50 Hz (Optional 380V)

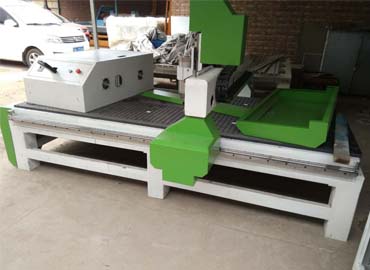

vi) Acrylic Cutting With ATC

Features:
  • Fabricated & stress relieved structure
  • Rigid High speed LM guides & blocks
  • 5.5 Kw imported spindle
  • Heavy original NC studio control system with hand wheel for positioning operation
  • Auto lubrication system
Main Performance and Technical Data:
Working Area 1200X1200X150 mm/1300X2500X200mm
Drive YASKAWA servo
Spindle speed 0-24000RPM
Spindle motor 5.5 Kw (Water cooled)
Fixing Method Double layer vacuum Absorption
Operating System NC Studio
Working Voltage 380V/50 -60Hz
Max. travelling Speed X & Y 30000mm/min
Z axis 15000mm/min
Position Accuracy 0.025mm
X, Y and Z Helical rack & Pinion, Z axis Ball screw
Tool Magazine Circular, 8 Tools
